DisplayPort to 4-Port DisplayPort Splitter Hub with MST

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.

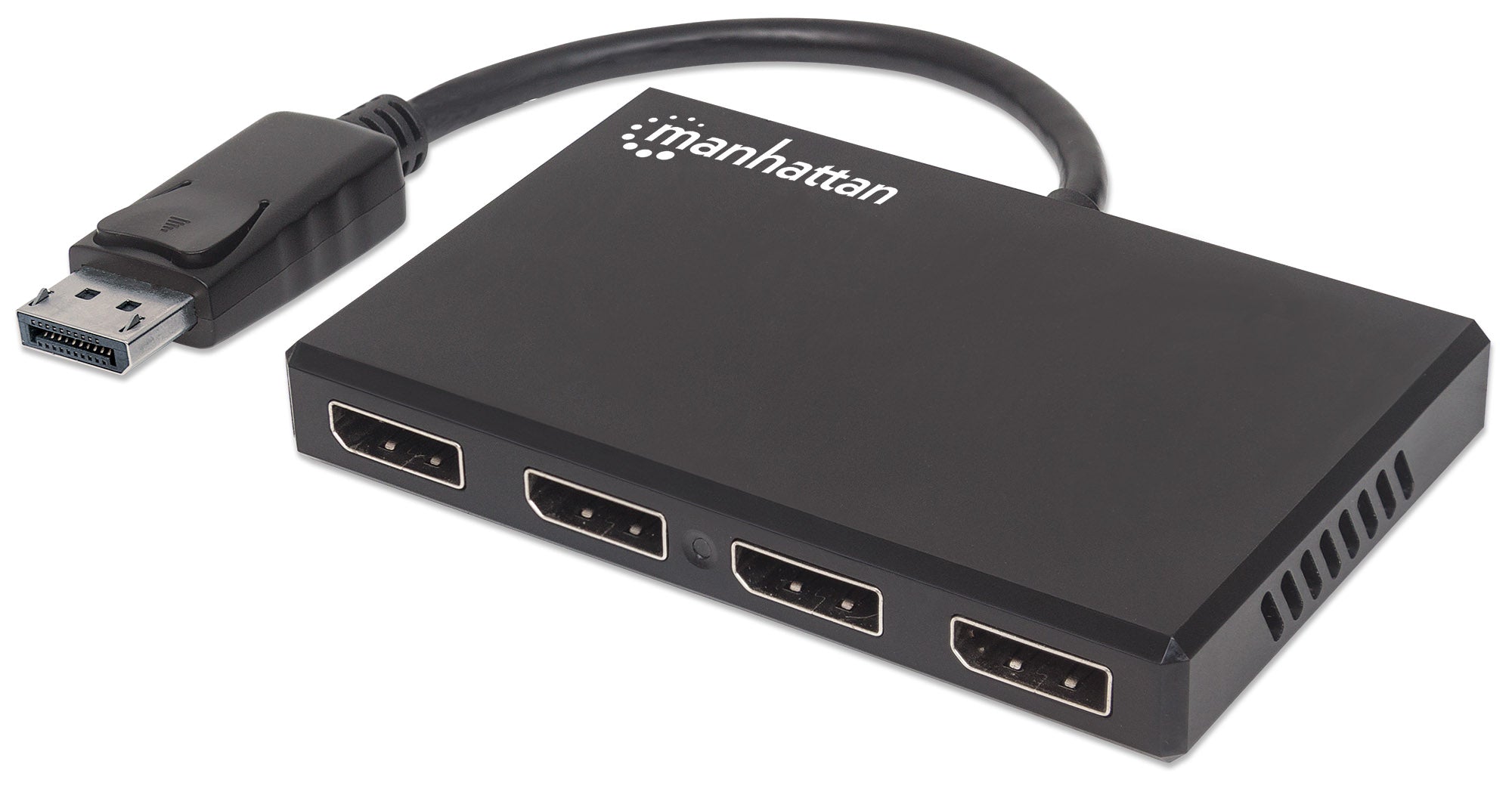

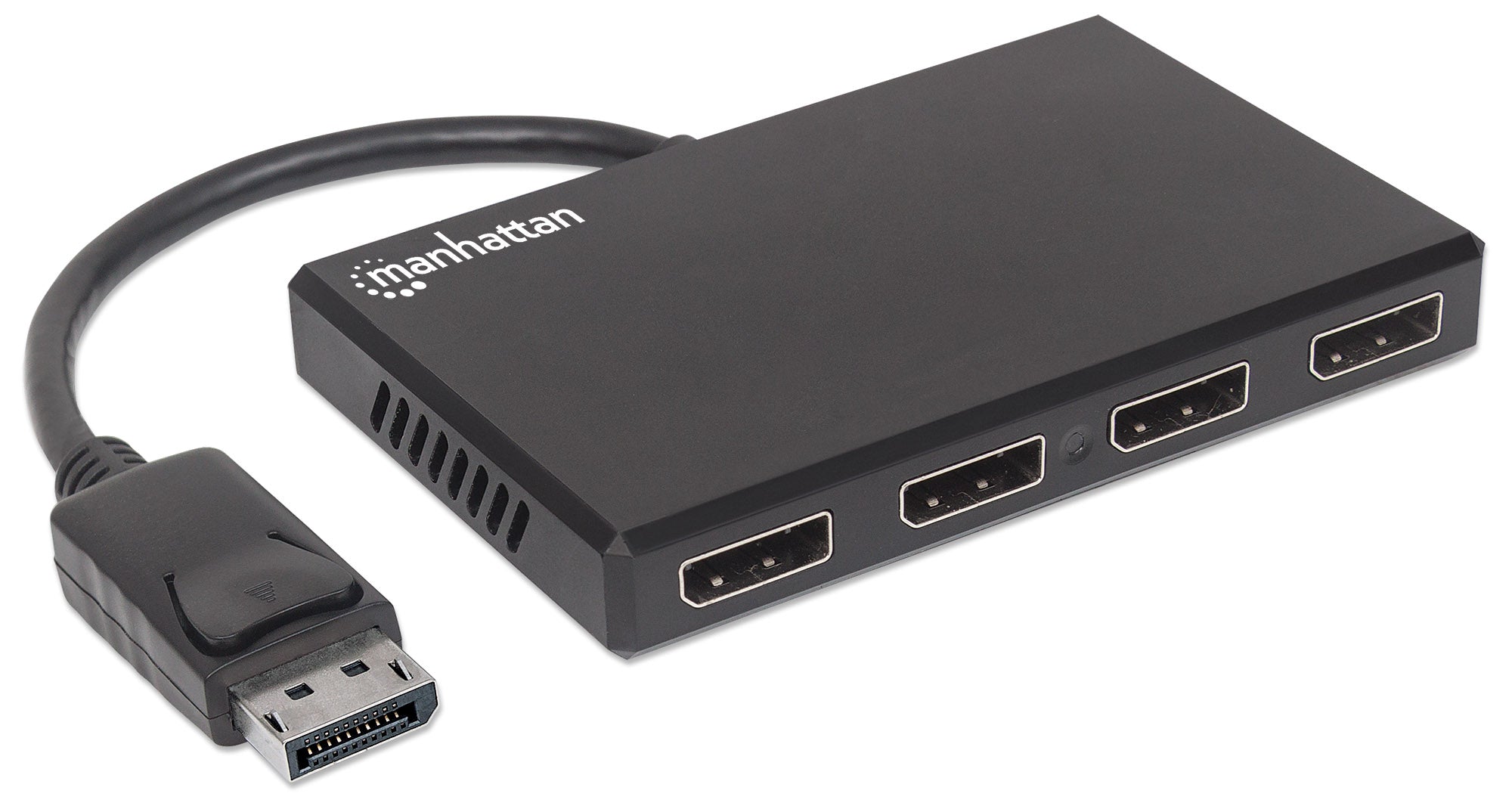

The Manhattan DisplayPort to 4-Port DisplayPort Splitter Hub with Multi-Stream Transport (MST) streams a DisplayPort signal from a single UHD source to up to four HD displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to 4-Port DisplayPort Splitter Hub with MST features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K DP displays. MST mode creates a video wall from four displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to 4-Port DisplayPort Splitter Hub with MST can provide long service and reliable performance. Quickly connect DP cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort solution is complete — no software/hardware configuration or complicated settings required.

• Duplicates an Ultra-High-Definition (UHD) DisplayPort signal for up to four UHD DisplayPort displays
• 4K@30Hz resolution, full 3D video and Deep Color
• Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
• Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
• Mirror mode duplicates the computer screen onto four displays with resolutions up to 4K@30Hz
• Extended mode expands the desktop workspace to up to four additional screens with resolutions up to 4K@30Hz
• MST mode creates a video wall for a more immersive experience, using four screens — with resolutions up to 3840x2160 at 30 Hz — as one; requires a graphics card that supports video-wall function
• Note: Intel graphics cards only support up to three displays at once.
• USB powered with Plug and Play installation; no special setup or remote required

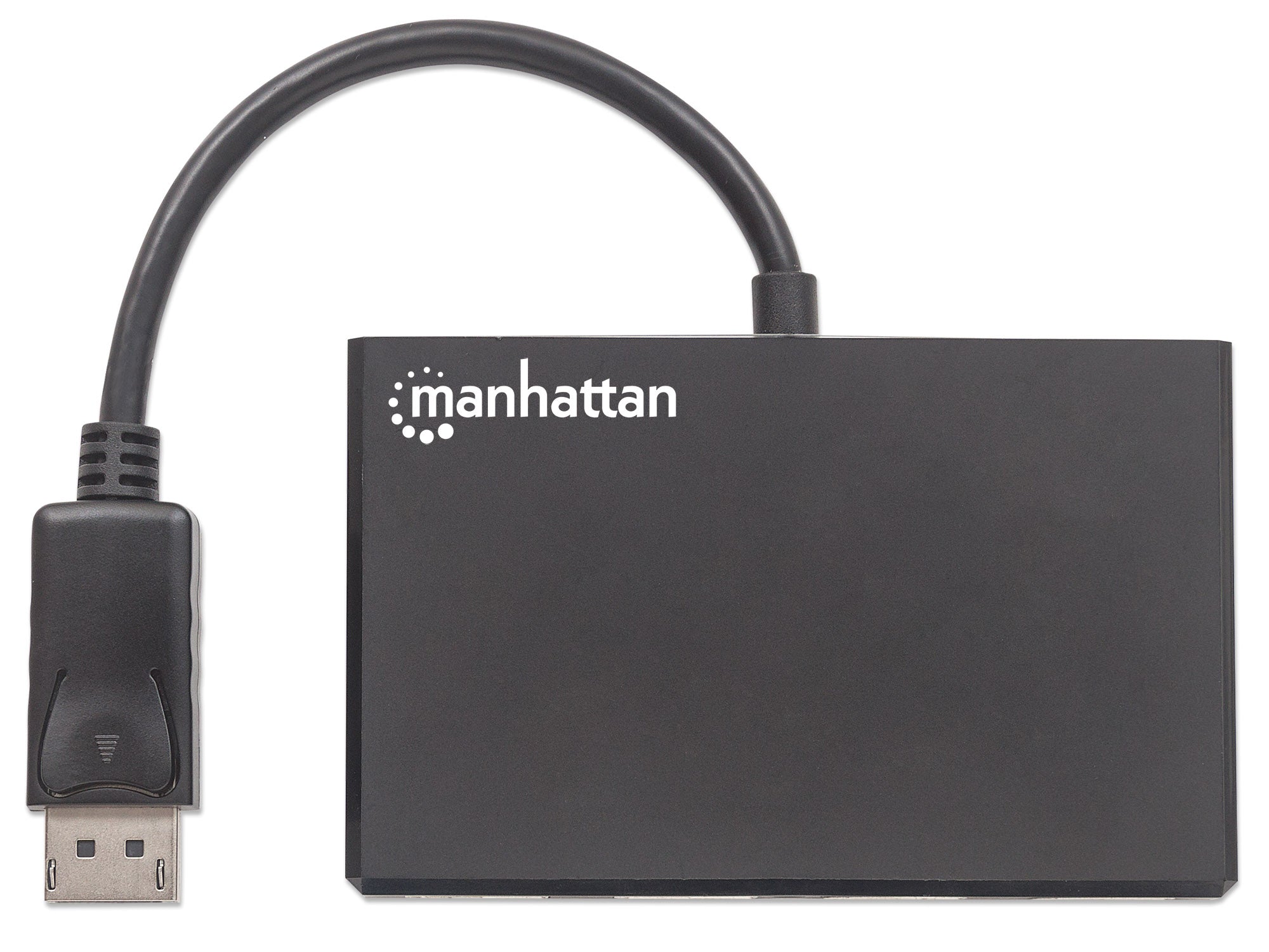

• Integrated DisplayPort cable
• Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
• HDCP 2.2 compliant
• Gold-plated contacts for corrosion-free connections
• Three-Year Warranty

Standards and Certifications

• DP 1.2

• HDCP 2.2

• DVI 1.0

• CTS 1.4a

• CE

• FCC

• RoHS2

  Connections

• One DisplayPort (DP) male (input)

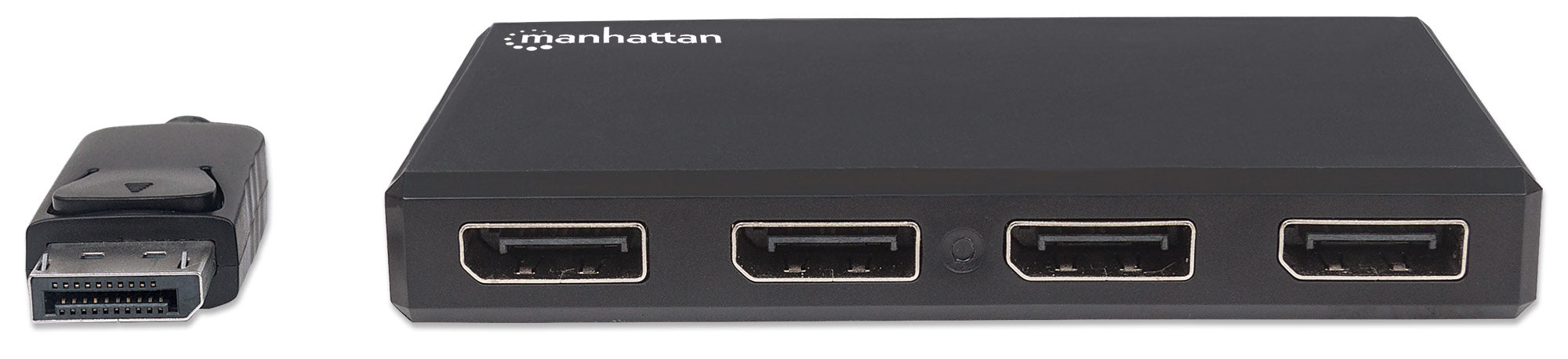

• Four DisplayPort (DP) female (output)

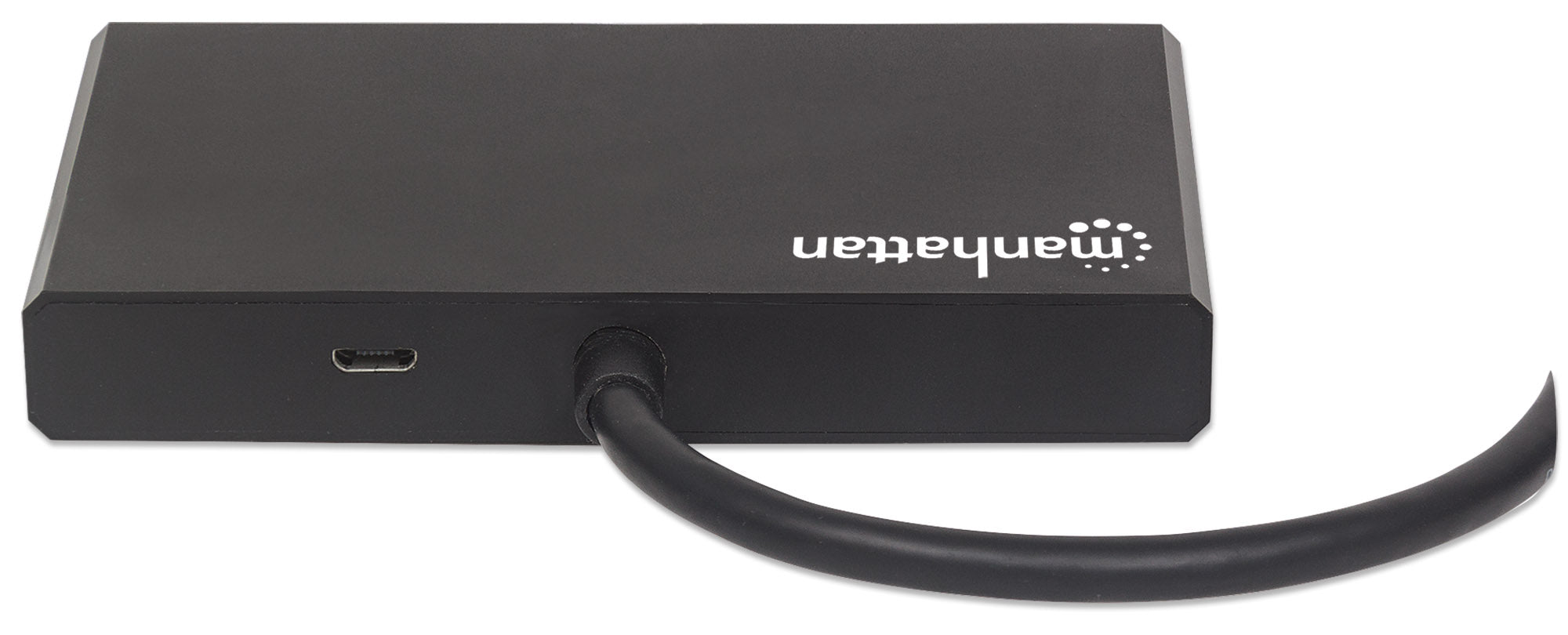

• One 5 V / 2 A USB Micro-B power female (input)

  Signal Input/Output

• Input video signal: 0.5 – 1.0 V p-p

• Input DDC signal: 5 V p-p (TTL)

• Maximum single-link range: 5.4 Gbps, 3840x2160 at 30 Hz resolution

• Output video: HDCP 2.2, DVI 1.0

  Audio & Video Resolutions

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
  One connected display: 4K@30Hz
  Two connected displays: 4K@30Hz
  Three connected displays: one at 4K@30Hz; two at 1080p@60Hz
  Four connected displays: all at 1080p@60Hz

• Support 7.1 sound channel, max Audio sample rate is 192KHZ
  Only one display will support audio when two or displays are connected

  Physical

• Dimensions: 250 x 105 x 15 mm (9.8 x 4.0 x 0.6 in.)

• USB Micro-B power cable: 1 m (3 ft.)

• Weight: 130 g (4.6 oz.)

• Housing: plastic

  Operating Environment

• Operation Temperature: 0 – 40°C (32 – 104°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

• Humidity (noncondensing): 0 – 96%

  System Requirements

• Windows XP/Vista/7/8.1/10

• DP 1.2 graphics card

  Package Contents

• DisplayPort to 4-Port DisplayPort Splitter Hub with MST

• USB power cable

• Quick Instruction Guide

• Other Part Numers

• Amazon ASIN: B077T3SWS6
• EAN: 0766623207737
• UPC: 766623207737
