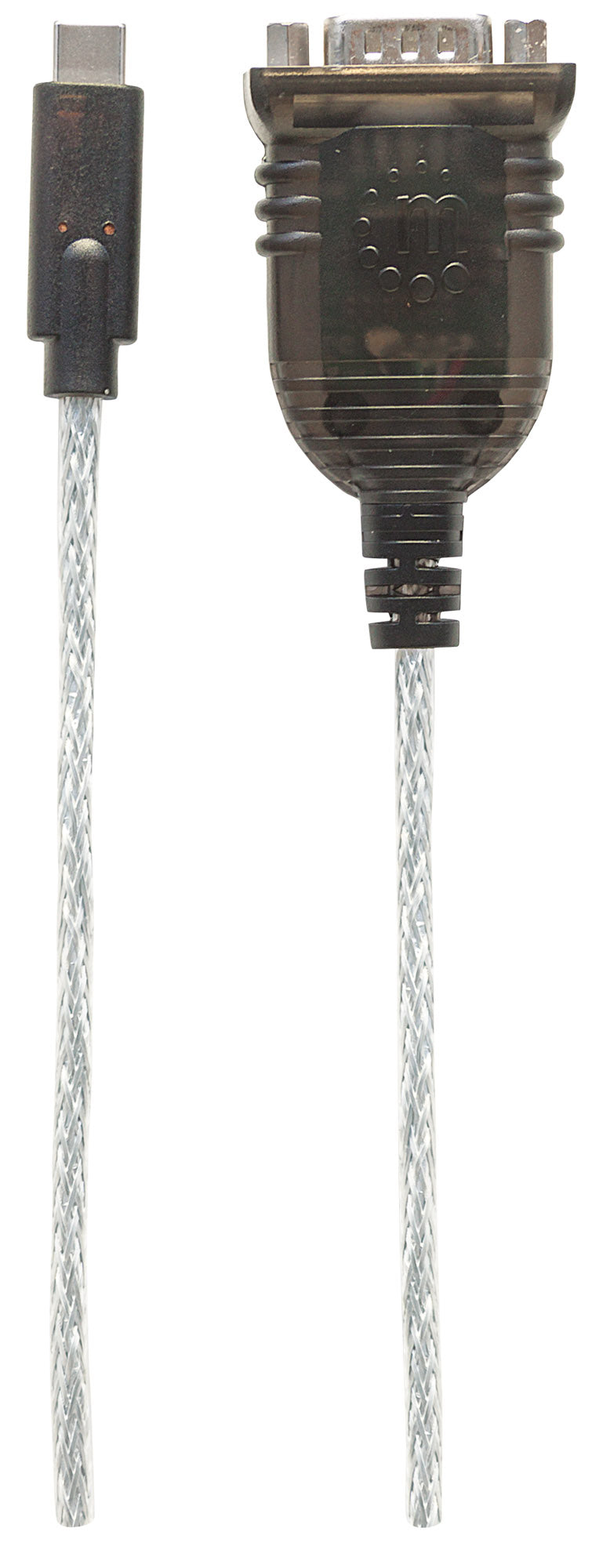

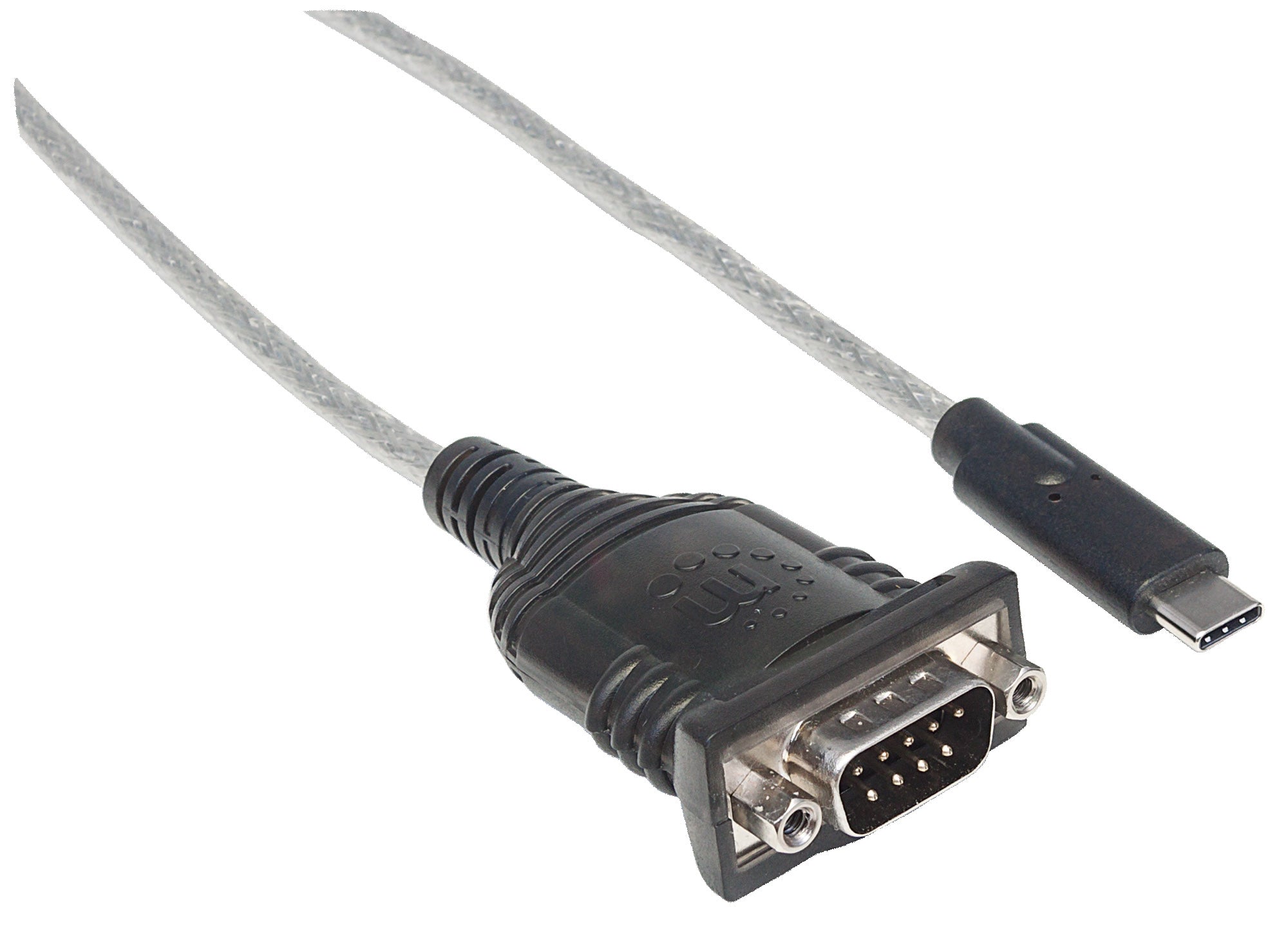

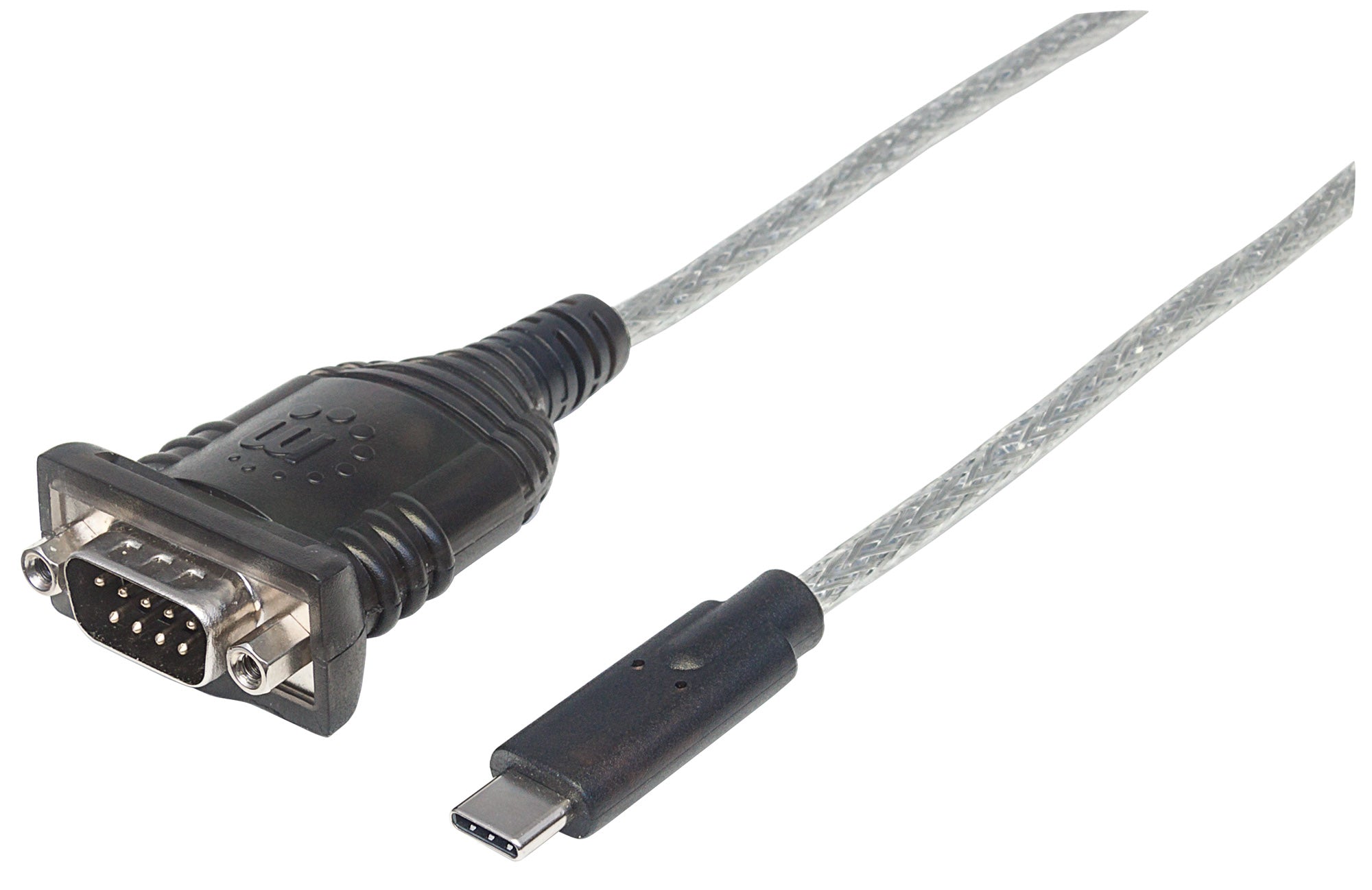

USB-C to Serial Converter

Easily connect serial devices through a USB port

Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303 chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.

Quality Construction and Easy Installation

Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.

• Quickly converts a USB Type-C port to a Serial/RS232/COM/DB9 port
• The customizable and compatible Prolific PL-2303 chipset makes it the ideal solution for many OSs and platforms
• Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
• Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech devices
• FTDI FT232RL chipset configuration is also available at ManhattanProducts.com
• Windows compatible; plug and play; hot-swappable
• Lifetime Warranty

Standards and Certifications

• CE

• FCC

• USB 1.0

• USB 1.1

• USB 2.0

• RoHS

• WEEE

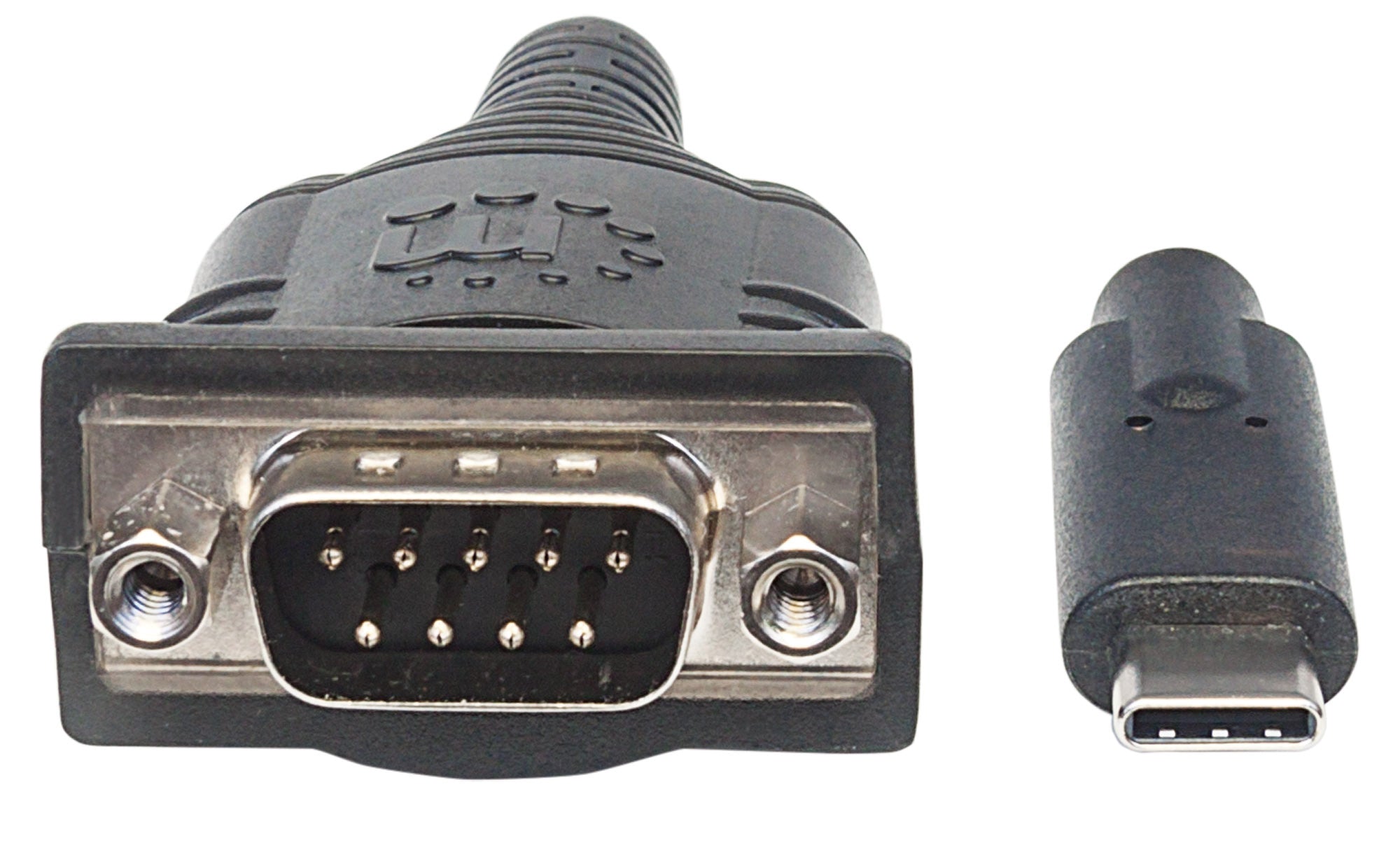

  Connections

• USB port; type-C male

• Serial/COM/RS232/DB9 port; 9-pin male

  General

• Transfer rate: up to 256 kbps

• Bus powered

• Overcurrent protection

• Prolific PL-2303 chipset

• Baud rate: 75K to 1M

  Physical

• 24 AWG cable gauge

• Cable length: 45 cm (18 in.)

• Weight: 0.03 kg (0.07 lbs.)

  Operating Environment

• Operation Temperature: 32 ~ 104°F (0 ~ 40°C)

• Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)

• Humidity (noncondensing): 5 ~ 90%

  System Requirements

• Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above

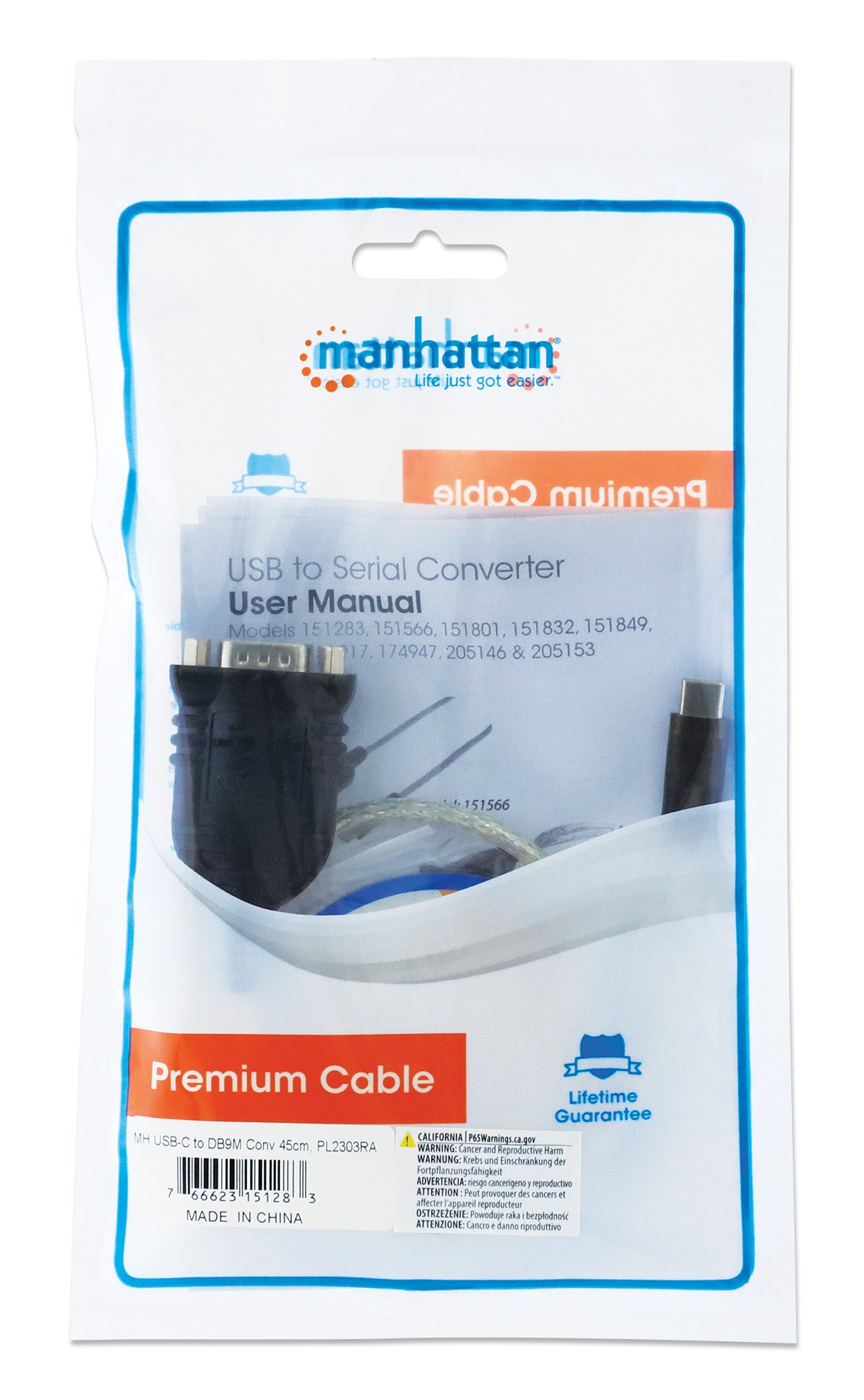

  Package Contents

• USB to Serial Converter

• Instructions

• Other Part Numers

• Amazon ASIN: B073FT3TZG
• EAN: 0766623151283
• UPC: 766623151283

• Datasheet
• Datasheet     » Download

• Driver
• Driver (MAC OS X)
  (10.6 -> 10.12)     » Download


• Driver (Linux)     » Download


• Driver Installer for Windows
  - WDF Driver: v3.8.25.0 (7/12/2018) - Windows 7/8.1/10
  - WDM Driver: v3.8.24.0 (7/05/2018) - Windows XP     » Download


• Driver 1.12.0 for Windows
  For Windows 10 (32 & 64-bit), Windows Vista, 7, 8, 8.1 (32 & 64-bit), Windows Server 2008, 2008R2, Server 2012, Server 2012R2 (64-bit), Windows 2000, XP, Server 2003 (32 & 64-bit)     » Download

• Manual
• User Manual     » Download


• Quick Instruction Guide     » Download

• Utility
• Chipset Check
  (identify which chipset the converter uses)     » Download
